Consent Manager – Prometheus-X Components & Services

Consent Manager

The Prometheus-X Consent Manager is a service for managing consent within the Prometheus-X ecosystem. It empowers ecosystem administrators to oversee and enforce consent agreements, data/service providers to adhere to consent regulations, and users to manage their consent preferences seamlessly.

Prerequisites

Before you begin, ensure you have met the following requirements:

pnpm package manager installed
mongodb with replicaset

Installation

Locally

git clone https://github.com/Prometheus-X-association/consent-manager.git
cd consent-manager
npm install --unsafe-perm
cp .env.sample .env
# Configure your environment variables in .env

Docker

Clone the repository from GitHub: git clone https://github.com/Prometheus-X-association/consent-manager.git
Navigate to the project directory: cd consent-manager and copy the .env.sample to .env cp .env.sample .env
Configure the application by setting up the necessary environment variables. You will need to specify database connection details and other relevant settings.

#Example
NODE_ENV=development
PORT=3000
APP_ENDPOINT=http://localhost:3000
MONGO_URI=mongodb://consent-manager-mongodb:27017/consent-manager
MONGO_URI_TEST=mongodb://consent-manager-mongodb:27017/consent-manager-test
API_PREFIX=/v1
SALT_ROUNDs=10
PDI_ENDPOINT=http://localhost:3331

APPLICATION_NAME=consentmanager-pdi
FEDERATED_APPLICATION_IDENTIFIER=http://localhost:3000

SESSION_COOKIE_NAME=consentmanagersessid
SESSION_SECRET=secret123
JWT_SECRET_KEY=secret123

OAUTH_SECRET_KEY=abc123secret
OAUTH_TOKEN_EXPIRES_IN=1h

CONTRACT_SERVICE_BASE_URL=http://localhost:3000/contracts

# Logs
WINSTON_LOGS_MAX_FILES=14d
WINSTON_LOGS_MAX_SIZE=20m

# Nodemailer
NODEMAILER_HOST=
NODEMAILER_PORT=
NODEMAILER_USER=abc@domain.com
NODEMAILER_PASS=pass
NODEMAILER_FROM_NOREPLY="abc <abc@domain.com>"

#MANDRILL
MANDRILL_ENABLED=false
MANDRILL_API_KEY="yourkey"
MANDRILL_FROM_EMAIL="noreply@visionstrust.com"
MANDRILL_FROM_NAME="noreply"

#Consent
#add multiple by adding ","
PRIVACY_RIGHTS=

WITHDRAWAL_METHOD=
CODE_OF_CONDUCT=
IMPACT_ASSESSMENT=
AUTHORITY_PARTY=

Create a docker network using docker network create ptx
Start the application: docker-compose up -d --build
If you don't want to use the mongodb container from the docker compose you can use the command docker run -d -p your-port:your-port --name consent-manager consent-manager after running docker-compose build

The consent manager is a work in progress, evolving alongside developments of the Contract and Catalog components of the Prometheus-X Ecosystem.

Terraform

Install Terraform: Ensure Terraform is installed on your machine.
Configure Kubernetes: Ensure you have access to your Kubernetes cluster and kubectl is configured.
Initialize Terraform: Run the following commands from the terraform directory.

cd terraform
terraform init

Apply the Configuration: Apply the Terraform configuration to create the resources.

terraform apply

Retrieve Service IP: After applying the configuration, retrieve the service IP.

terraform output consent_manager_service_ip

Replace placeholder values in the kubernetes_secret resource with actual values from your .env.

Ensure the server_port value matches the port used in your application.

Adjust the host_path in the kubernetes_persistent_volume resource to an appropriate path on your Kubernetes nodes.

Deployment with Helm

Install Helm: Ensure Helm is installed on your machine. You can install it following the instructions here.
Package the Helm chart:
```
helm package ./path/to/consent-manager
```

Deploy the Helm chart:

helm install consent-manager ./path/to/consent-manager

Verify the deployment:
```
kubectl get all -n consent-manager
```
Retrieve Service IP:
```
kubectl get svc -n consent-manager
```

Replace placeholder values in the values.yaml file with actual values from your .env.

Ensure the port value matches the port used in your application.

Configure your MongoDB connection details in the values.yaml file to point to your managed MongoDB instance.

Endpoints

For a complete list of all available endpoints, along with their request and response schemas, refer to the JSON Swagger Specification provided or visit the github-pages of this repository which displays the swagger specification with the Swagger UI.

The Consent Agent is a component of Prometheus-X that handles the preferences and recommendations of the users. It is integrated into the Consent Manager through the ConsentAgent class, which is responsible for setting up the agent and retrieving the service.

All endpoints, including those related to the Consent Agent, are documented in the JSON Swagger Specification provided in this repository, in the profile section.

For more information on the Consent Agent and its integration with the Consent Manager, please refer to the Consent Agent documentation.

Configuration

To use the consent agent you must configure the consent-agent.config.sample.json

cp consent-agent.config.sample.json consent-agent.config.json

After copying this file and filling in your information, the Consent Agent will be configured at startup.

Configuring a DataProvider (`consent-agent.config`)

The configuration file is a JSON document consisting of sections, where each section describes the configuration for a specific DataProvider. Below is a detailed explanation of the available attributes:

source: The name of the target collection or table that the DataProvider connects to.
url: The base URL of the database host.
dbName: The name of the database to be used.
watchChanges: A boolean that enables or disables change monitoring for the DataProvider. When enabled, events will be fired upon detecting changes.
hostsProfiles: A boolean indicating whether the DataProvider hosts the profiles.
existingDataCheck: A boolean that enables the creation of profiles when the module is initialized.

Example Configuration

Here’s an example of a JSON configuration:

{
  "source": "profiles",
  "url": "mongodb://localhost:27017",
  "dbName": "contract_consent_agent_db",
  "watchChanges": false,
  "hostsProfiles": true,
  "existingDataCheck": true
}

Prerequisites for running the test agent

.env file
Mongodb database with replica-set

Run tests:

pnpm test-agent

This command will run your tests using Mocha, with test files located at ./src/tests/agent.spec.ts.

Run tests in docker

docker exec -it consent-manager npm run test-agent

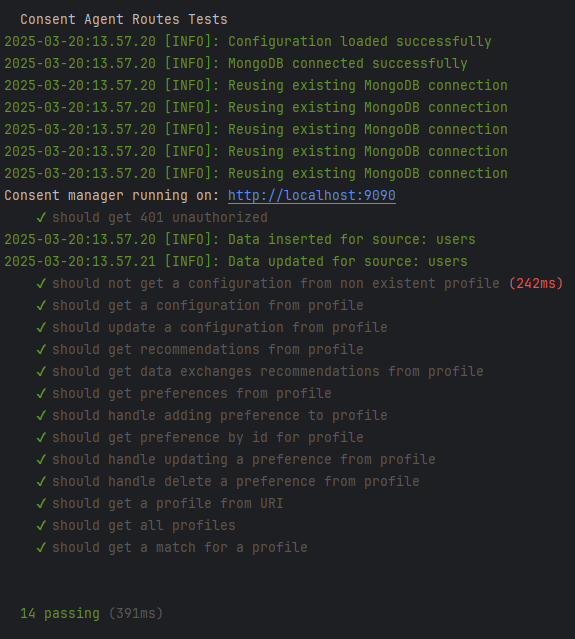

Expected output

example endpoints

Before using these endpoints you need to signup with a user to get access token

POST /${API_PREFIX}/users/signup

input:

{
  "firstName": "john",
  "lastName": "doe",
  "email": "john@doe.com",
  "password": "1234"
}

output :

{
  "user": {
    "firstName": "john",
    "lastName": "doe",
    "email": "john@doe.com",
    "password": "$2b$10$Vf7EoR.Wp3GxWWb6LUNU1OSgahDppRSOCyU3X0Wan5AcR/88b6BpO",
    "identifiers": [],
    "oauth": {
      "scopes": ["Read user data", "Modify user data"],
      "refreshToken": "62025bd0886e77f1f895b0d1b9e70c82ef8af61f6232298d7c14bb630bfdf62f"
    },
    "jsonld": "{\n  \"@context\": \"http://schema.org\",\n  \"@type\": \"Person\",\n  \"name\": \"john doe\",\n  \"email\": \"john@doe.fr\",\n  \"url\": \"undefined:8887/v1/users/67dd2b9d389148595b049e9d\"\n}",
    "schema_version": "v0.1.0",
    "_id": "67dd2b9d389148595b049e9d",
    "createdAt": "2025-03-21T09:04:29.719Z",
    "updatedAt": "2025-03-21T09:04:29.719Z",
    "__v": 0
  },
  "accessToken": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiI2N2RkMmI5ZDM4OTE0ODU5NWIwNDllOWQiLCJlbWFpbCI6ImpvaG5AZG9lLmZyIiwic2NvcGVzIjpbIlJlYWQgdXNlciBkYXRhIiwiTW9kaWZ5IHVzZXIgZGF0YSJdLCJpYXQiOjE3NDI1NDc4NjksImV4cCI6MTc0MjU1MTQ2OX0.U67aO9mUn1ITceeQSFpHyA0WuguW9M4zg2cPlTQXNUU",
  "refreshToken": "62025bd0886e77f1f895b0d1b9e70c82ef8af61f6232298d7c14bb630bfdf62f"
}

GET /${API_PREFIX}/profile/${userId}/configurations

headers: {"Authorization": Bearer JWT}

input: -

output :
{
  "allowRecommendations": true
}

POST /${API_PREFIX}/profile/${userId}/preferences

headers: {"Authorization": Bearer JWT}

input:

{
  "preference": [
    {
      "participant": "65eb2661a50cb6465d41865c",
      "asDataProvider": {
        "authorizationLevel": "never",
        "conditions": [
          {
            "time": {
              "dayOfWeek": ["0"],
              "startTime": "2024-03-27T14:08:19.986Z",
              "endTime": "2025-03-27T14:08:19.986Z"
            }
          }
        ]
      },
      "asServiceProvider": {
        "authorizationLevel": "always",
        "conditions": [
          {
            "time": {
              "dayOfWeek": ["0"],
              "startTime": "2024-03-27T14:08:19.986Z",
              "endTime": "2025-03-27T14:08:19.986Z"
            },
            "location": {
              "countryCode": "US"
            }
          }
        ]
      }
    }
  ]
}

output :

[
  {
    "participant": "65eb2661a50cb6465d41865c",
    "asDataProvider": {
      "authorizationLevel": "never",
      "conditions": [
        {
          "time": {
            "dayOfWeek": ["0"],
            "startTime": "2024-03-27T14:08:19.986Z",
            "endTime": "2025-03-27T14:08:19.986Z"
          }
        }
      ]
    },
    "asServiceProvider": {
      "authorizationLevel": "always",
      "conditions": [
        {
          "time": {
            "dayOfWeek": ["0"],
            "startTime": "2024-03-27T14:08:19.986Z",
            "endTime": "2025-03-27T14:08:19.986Z"
          },
          "location": {
            "countryCode": "US"
          }
        }
      ]
    },
    "_id": "67c7005c5ae3449ac23751de"
  }
]

For more information see the Tests definition.

Contributing

We welcome contributions to the Prometheus-X Consent Manager. If you encounter a bug or wish to propose a new feature, kindly open an issue in the GitHub repository. For code contributions, fork the repository, create a new branch, make your changes, and submit a pull request.

License

The Prometheus-X Consent Manager is open-source software licensed under the MIT License.
